● Power Voltage (V): DC12
● Suspension Capacity: 1100kg
● Maximum Traction Force: 3300kg
● Motor: 4.6hp / 3.4kW
● Controller: Remote Switch (Cable Length: Approx. 5 m)
● Clutch: Sliding Ring Gear
● Brake Method: Automatic Direct Drive Brake

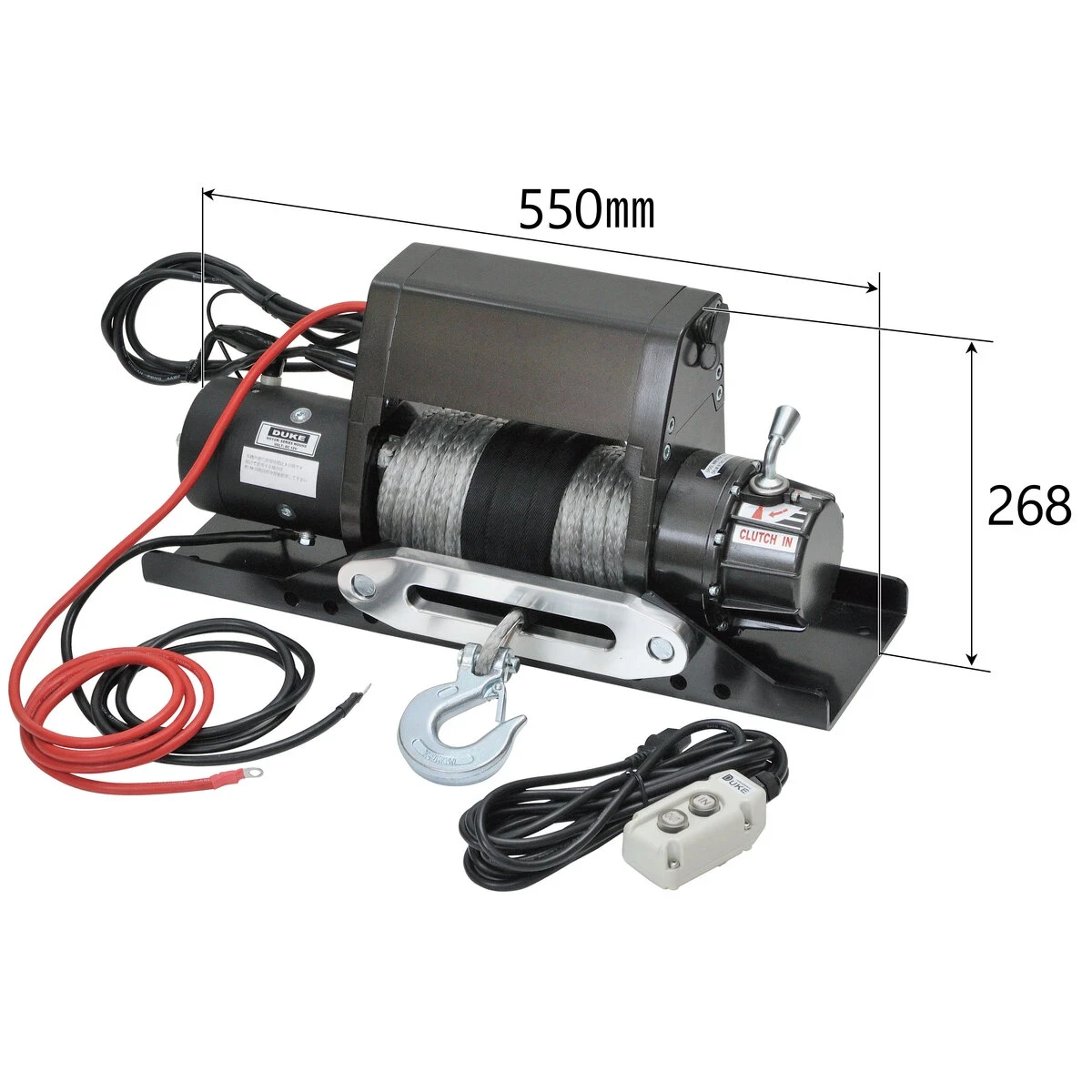

● Dimensions: Body / Width 550 × Depth 160 × Height 268 mm
Drum Section / Diameter 64 × Length 230 mm
　　　　Synthetic Fiber Rope / Diameter 8mm × Length Approx. 30 m
● Rope Guide: Dedicated Aluminum Synthetic Fiber Rope Guide
● Battery: 60Ah or more
● Battery Cable: (+)(-) each 1.95m
● Rope Winding Speed (per 1m):
　　No Load / Approx. 5.6 seconds
　　Load (910kg) / Approx. 11.8 seconds
● Continuous Usage Time: 3 minutes
　　※ You can touch the motor with your hand; if it is not hot, you can restart it

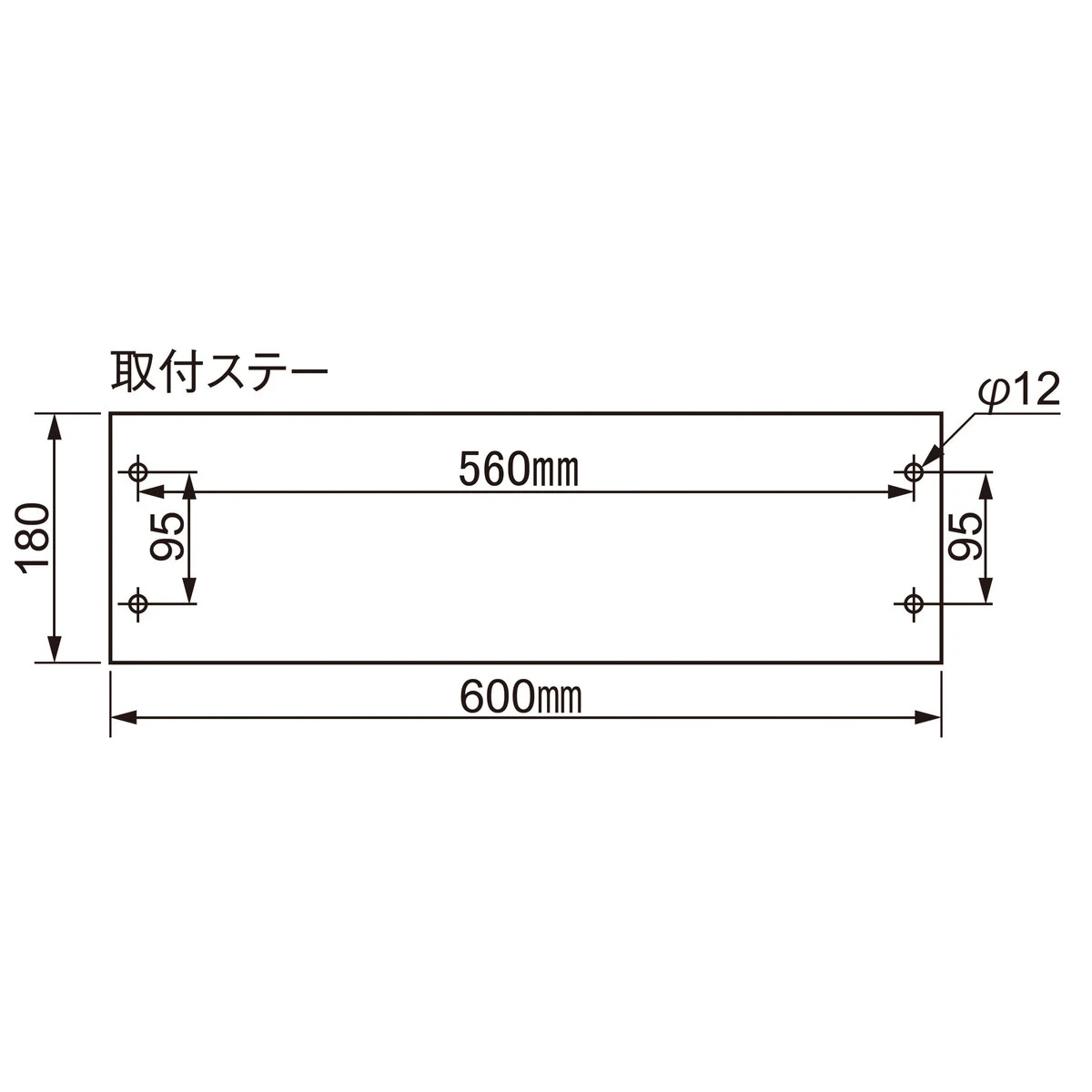

● Accessories: Installation Bracket, Remote Switch, Rope Guide (including Bolts, Nuts, Flat Washers), Hook
● Weight: 32.75kg (including bracket)
